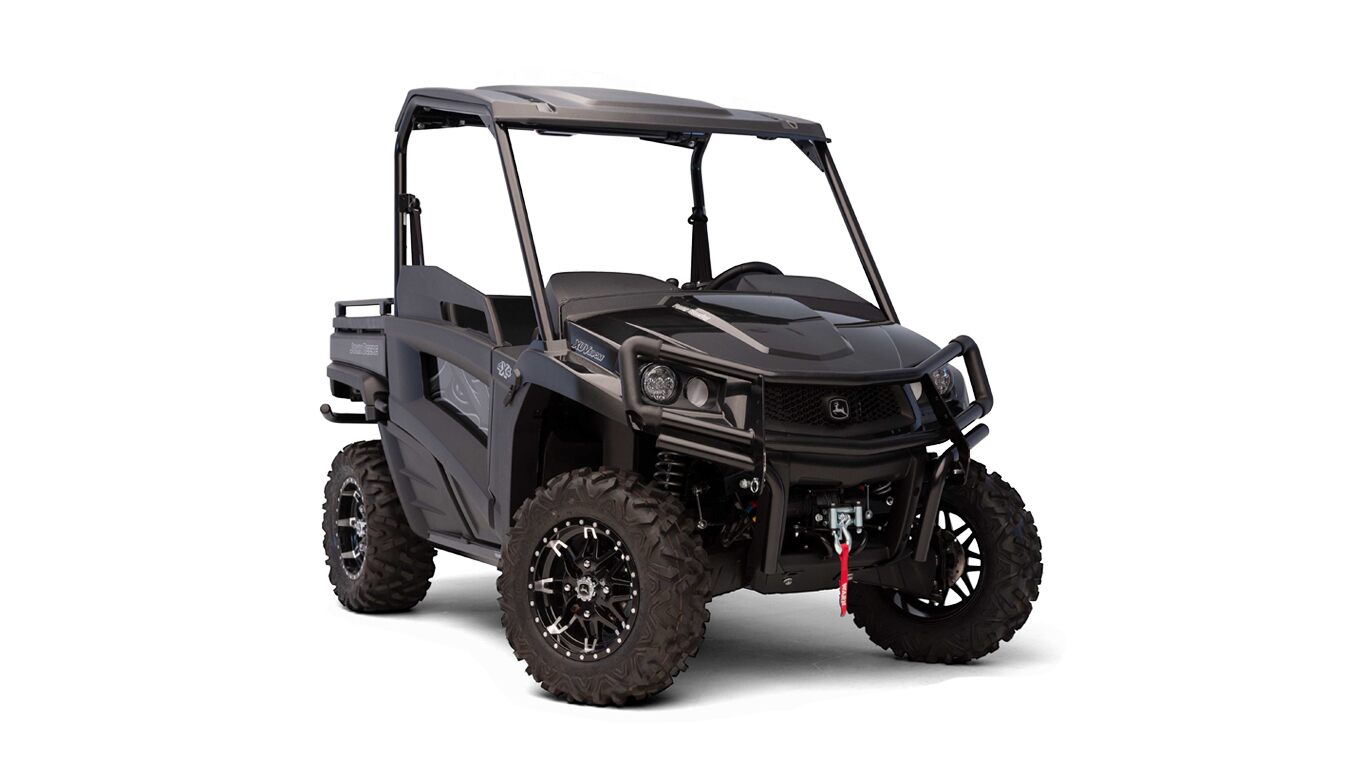

XUV590M SE UTILITY VEHICLE

Crossover Utility Vehicle

  • Unique black and silver color for one-of-a-kind styling, coupled with both sport and functional accessories
  • Four-wheel independent suspension for excellent ride and handling
  • Quiet and comfortable operator station
  • Over 11 different options come standard including: roof, brush guard, and winch



View Product Brochure



Features



Special Edition comes loaded with added attachments and features

#

The Gator™ XUV590M Special Edition Utility Vehicles comes with the following features and attachments:

  • XUV590M Special Edition comes in high-gloss black with Special Edition graphics
High-gloss black with silver model decalsHigh-gloss black with silver model decals
Special Edition dash decalSpecial Edition dash decal
  • 66-cm (26-in.) Maxxis® Bighorn® tires on 35.6-cm (14-in.) aluminum black alloy wheels
Maxxis Bighorn tires on black aluminum alloysMaxxis Bighorn tires on black aluminum alloys
  • FOX monotube racing shocks for a smooth ride
FOX monotube racing shocksFOX monotube racing shocks
  • Sport steering wheel with silver color accents and easy-to-grip design

Sport steering wheelSport steering wheel
  • Occupant side retention (OSR) half doors and Special Edition Gator closeout panel for a customized look

OSR half door with custom Special Edition Gator closeout panelOSR half door with custom Special Edition Gator closeout panel
  • Utility and protection package including poly roof, brush guard, cargo box rails, rear bumper, and floor mats

Poly roof, brush guardPoly roof, brush guard
Rear bumper, cargo box railsRear bumper, cargo box rails
Floor matsFloor mats
  • 1587.6-kg (3500-lb) WARN® winch with 5.1-cm (2-in.) front receiver and recovery loops

3500 lb WARN winch with front receiver and recovery loops3500 lb WARN winch with front receiver and recovery loops

Maxxis and Bighorn are Cheng Shin Rubber Ind. Co., Ltd. FOX is a trademark of FOX Factory, Inc. WARN is a trademark of WARN Industries, Inc.

XUV590 with OSR netsXUV590 with OSR nets

A dynamically stable vehicle starts with the architectural design; the Gator™ XUV Crossover Series has a low center of gravity, a wide stance, and balance of weight between the front and rear axles.



The combination leads to a class-leading static stability factor (SSF) and passing a multitude of dynamic stability tests.

OPS
Standard OPSStandard OPS

Standard OPS with three-point seat belts and OSR nets are shown on the XUV560E.



The OPS is Society of Automotive Engineers (SAE) J2194 certified.

OSR
OSR nets (available on XUV560 & XUV590)OSR nets (available on XUV560 & XUV590)
OSR doors (compatible with all XUV590 models)OSR doors (compatible with all XUV590 models)

Meets American Nation Standards Institute (ANSI) B71.9 certification

  • One-handed operation
  • Easy entry/exit
  • Great visibility

Specifications


Compare the specifications of up to 4 models

Key Specs xuv590m-se-utility-vehicle
Current Model
Engine power23.8* kW
32 hp
Maximum traveling speedHigh forward: 0-77 km/h
0-48 mph
Low forward: 0-45 km/h
0-28 mph
Reverse: 0-35 km/h
0-22 mph
Cargo box dimensions82 cm x 120.9 cm x 29.7 cm (0.25 m3)
32.3 in. x 47.6 in. x 11.7 in. (8.9 cu ft)
Cargo box capacity (weight)227 kg
500 lb
Towing capacity680 kg
1500 lb
Front suspensionFully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar
Rear suspensionFully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel
Final driveHigh, low, neutral, reverse transaxle
Four wheel driveDash-lever-actuated four-wheel drive system with limited slip front differential plus locking rear differential
Fuel capacity28 L
7.4 U.S. gal.
Engine
Type4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)
Displacement586 cc
Power23.8* kW
32 hp
Cooling systemLiquid cooled
Drivetrain
TransmissionContinuously Variable Transmission (CVT) with clutch enclosure
Final driveHigh, low, neutral, reverse transaxle
Four wheel driveDash-lever-actuated four-wheel drive system with limited slip front differential plus locking rear differential
Traction assistPositive locking, mechanically actuated (hand-lever-operated) rear differential lock
Descent controlNot available
Maximum traveling speedHigh forward: 0-77 km/h
0-48 mph
Low forward: 0-45 km/h
0-28 mph
Reverse: 0-35 km/h
0-22 mph
Suspension
FrontFully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar
RearFully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel
Brakes
Type196 mm (7.7 in.) ventilated four-wheel stainless-steel disc brakes with 34.93 mm (1.375 in.) diameter hydraulic twin-piston calipers
Park brakeAutomotive-style, foot-actuated mechanical park brake system
Tires / Wheels
Front
Rear25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
Optional: 26x10-14 Maxxis Bighorn 2.0 6-ply rating on various color aluminum alloys
Dimensions / Capacities
Wheelbase1.86 m
72.8 in.
Dry weightWet weight (includes fuel/fluids): 650 kg
1434 lb
Length2870 mm
113 in.
Width1435 mm
56.5 in.
Height1867 mm
73.5 in.
Tread centersFront: 1220 mm
48 in.
Rear: 1168 mm
46 in.
Ground clearanceMinimum: 267 mm
10.5 in.
Fuel capacity28 L
7.4 U.S. gal.
Cargo box dimensions82 cm x 120.9 cm x 29.7 cm (0.25 m3)
32.3 in. x 47.6 in. x 11.7 in. (8.9 cu ft)
Cargo box capacity (weight)227 kg
500 lb
Payload capacity408 kg
900 lb
Towing capacity680 kg
1500 lb
HitchStandard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops
Features
ColorMidnight black
Power steeringStandard
Battery / Alternator / Power port340 CCA
65 amp @ 3400 rpm regulated
12 VDC standard outlet
InstrumentationDigital instrument cluster displays critical vehicle information such as speed, engine rpm, fuel level, coolant temperature, trip, odometer, time
StorageTwo cupholders, sealed underhood storage, glovebox
SeatingBench seat
Headlights
